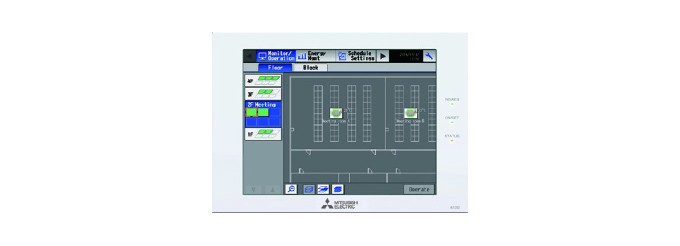

AE-200E/AE-50E
Color LCD Touch Panel A 10.4-in LCD touch panel with high definition is used. The large display screen and the floor screen image are excellent in visibility, and the equipment can be operated by touching the icons on the touch panel.

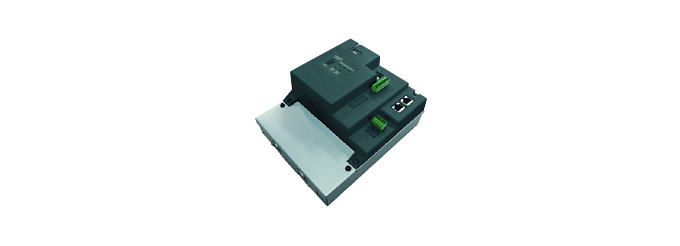

Connectable IDU's Up to 200 indoor units can be controlled centrally by adding expansion controllers (AE-50/EW-50). Operation of up to 2000 indoor units can be controlled from the Web browsers on personal computers and tablets by registering the Integrated centralized control license (optional).
Remote Monitoring and Control Air conditioners can be monitored and operated from the browser screens on remote personal computers by connecting the personal computers to the Internet through Internet connection modem and VPN router on the LAN wiring.
Energy Management (Optional) The power consumption and operating time of air conditioners are displayed on the AE-200. The usage of air conditioners and the effect of energy saving control can be checked. In addition to the graphic display, the data can be displayed in rank order.
Apportion Electricity Charges (Optional) The power consumption of each air conditioner can be calculated with an AE-200E controller. The calculated data can be output to a PC via a USB memory device or LAN, and billing charges can be prepared using a specific charge calculation tool.
Interlock control function (Optional) Interlocks with air-conditioning, ventilation and general-purpose devices can be set using the start/stop status of indoor unit as input conditions of the interlocking source.
Operation Using Smartphone (Optional) Air conditioning units can be operated and monitored from smartphones. You can easily see the operation conditions of units in the same manner as when browsing a website.
Weekly Schedule Weekly operation schedules can be set according to the day of the week and time. Five kinds of seasonal schedules can be set, and the schedules can be used according to the season by changing the term.
Annual Schedule 5 patterns of operation schedules for 50 days can be set up to 24 months ahead. The annual scheduling is suitable for setting the operation on national holidays to which weekly schedules are not applicable.
BMS Compatability BACnet® CITY MULTI can easily combine into a Building Management System (BMS) via AE-200E. BACnet® is an open transmission protocol widely used at BMS, and related equipment control. CITY MULTI is compatible with large-scaled BMS management via BACnet®.
