Air Conditioning Systems
RAY-Series
Features
DC Inverter
DC fan motor
Auto Restart
Fast Cool

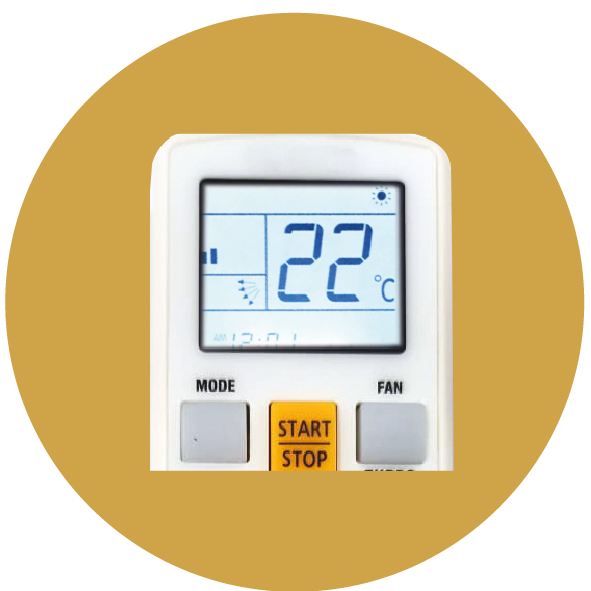

LED back light
Technical Specifications
| Type (Cooling) |
|---|
| Indoor Unit |
| RAY-UE13VG |
| Outdoor Unit |
| RBY-UE13VG |
| Performance Parameters | |
|---|---|
| Capacity (Tr) | 1.0 Tr |
| Star Rating - As Per BEE | 5 Star  |
| Power Supply | 230 V / 50 Hz / Single Phase |
| Rated Capacity | 3450 W |
| Rated Power Input | 868 W |
| ISEER | 5.1 |
| Rated Current (Amps) | 3.85 |
| Indoor Air Flow (CMH) (Turbo/Hi/Mi/Lo) | 820/780/650/545 |
| Indoor Noise(Low/Mid/Hi/Turbo Speed) | 43/44/48/50 |
| Refrigerant | R32  |
| Dimensions & Weight | |||
|---|---|---|---|
| Indoor unit | Net Dimensions (W x D x H) | mm | 800x230x295 |
| Net Weight | kg | 9.3 | |
| Outdoor unit | Net Dimensions (W x D x H) | mm | 781x281x555 |
| Net Weight | kg | 25.5 | |
| Connecting Pipe | Liquid and Gas Side Dia) | mm | 12.7/6.35 |
| Maximum Length | mm | 15 | |
| Maximum Elevation | m | 10 | |
| Ambient Operating Range | °C | 48° | |
