Air Conditioning Systems
RAY-Series
Features
DC Inverter
DC Inverter
Auto Restart
Fast Cool

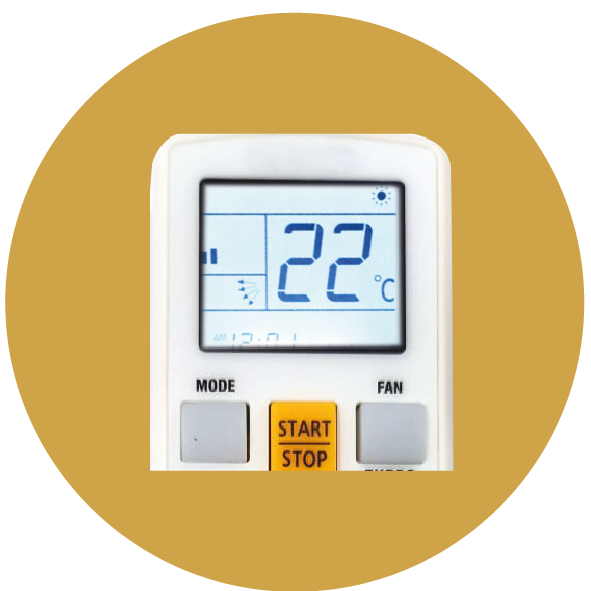

LED back light
Technical Specifications
| Type (Cooling) |
|---|
| Indoor Unit |
| RAY-UE22VG |
| Outdoor Unit |
| RBY-UE22VG |
| Performance Parameters | |
|---|---|
| Capacity (Tr) | 1.8 Tr |
| Star Rating - As Per BEE | 5 Star  |
| Power Supply | 230 V / 50 Hz / Single Phase |
| Rated Capacity | 6100 W |
| Rated Power Input | 1550 W |
| ISEER | 5.1 |
| Rated Current (Amps) | 7.08 |
| Indoor Air Flow (CMH) (Turbo/Hi/Mi/Lo) | 1400/1150/1050/980 |
| Indoor Noise(Low/Mid/Hi/Turbo Speed) | 46/47/49/54 |
| Refrigerant | R32  |
| Dimensions & Weight | |||
|---|---|---|---|
| Indoor unit | Net Dimensions (W x D x H) | mm | 1100x250x330 |
| Net Weight | kg | 14.2 | |
| ODU Dimension | Net Dimensions (W x D x H) | mm | 810x301x645 |
| Net Weight | kg | 33.2 | |
| Connecting Pipe | Liquid and Gas Side | mm | 15.8/6.35 |
| Maximum Length | m | 15 | |
| Maximum Elevation | m | 10 | |
| Ambient Operating Range | °C | 48° | |
