Air Conditioning Systems
RAM-Series
Features
DC fan motor
Auto Restart
Blue Fin
Fast Cool

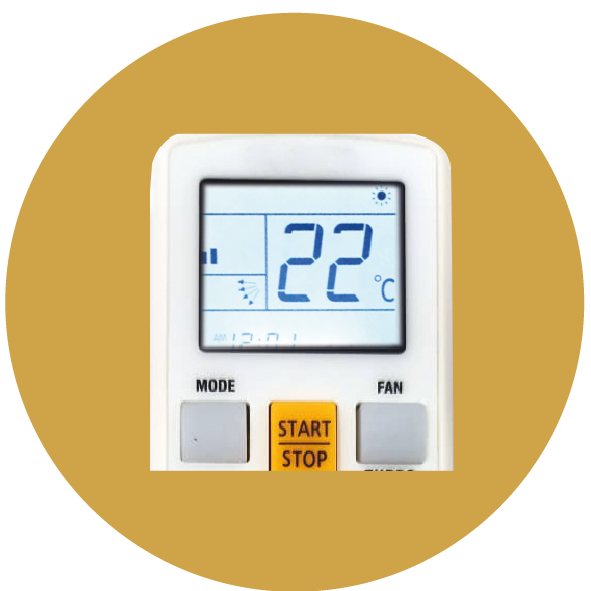

LED back light
PM 2.5 filter
Technical Specifications
| Type (Cooling) |
|---|
| Indoor Unit |
| RAM-AE22VG |
| Outdoor Unit |
| RBM-AE22VG |
| Performance Parameters | |
|---|---|
| Capacity (Tr) | 1. 8 Tr |
| Star Rating - As Per BEE | 2 Star  |
| Power Supply | 230 V / 50 Hz / Single Phase |
| Rated Capacity | 6200 W |
| Rated Power Input | 1758 W |
| ISEER | 3.53 |
| Rated Current (Amps) | 8.6 |
| Indoor Air Flow (CMH) (Turbo/Hi/Mi/Lo) | 1100/1020/820/790 |
| Indoor Noise(Low/Mid/Hi/Turbo Speed) | 46/47/49/51 |
| Refrigerant | R32  |
| Dimensions & Weight | |||
|---|---|---|---|
| Indoor unit | Net Dimensions (W x D x H) | mm | 1000 x 230 x 295 |
| Net Weight | kg | 11.0 | |
| Outdoor unit | Net Dimensions (W x D x H) | mm | 850 x 310 x 697 |
| Net Weight | kg | 48 | |
| Connecting Pipe | Liquid and Gas Side Dia | mm | 15.88/6.35 |
| Maximum Length | m | 20 | |
| Maximum Elevation | m | 10 | |
| Ambient Operating Range | °C | 48° | |
